Strut-and-tie A to Z

By Nan Gao.


ACRONYM

STM is the acronym for “Strut and Tie Models” or “Strut and Tie Methods“. It is a design method of reinforced concrete structures by idealizing structural components as truss models which are composed of axially loaded members, including compression bearing members (strut) and tension bearing members (tie).

B REGION

The word “B region” is short for “Bernoulli region” or “Beam region“. According to Bernoulli hypothesis (Plane sections remain plane after bending…), the strains in concrete structures follow a linear distribution. This is the theoretical basis for flexural design of concrete components. Those regions which follow Bernoulli hypotheses belong to B regions. They could be designed by simple calculations.

CORBEL

Corbel is an example which does not follow the Bernoulli hypotheses. It is discontinued in geometry. Or we can say the stress and strain in corbel is disturbed.

D REGION


Examples of D regions
D region means “discontinued region” or “disturbed region“, such as corbel. These D regions do not follow Bernoulli hypothesis. Thus, they could not be designed or analyzed by simple calculations. The solution is either empirical approximation or very complicated computations such as FEA methods.

EXAMPLES

Besides corbels, there are many other types of D regions, such as deep beams, pile caps, beams with opening holes, and beam-column joints.

FLEXURE

Take the design of pile caps as an example. In many cases, pile caps are designed by beam theory. They are assumed to fail in flexure, which is a ductile break and has warning cracks. However, according to several research works, the failure modes of most of them are brittle shear failures.

GRAPHICAL PROCEDURE

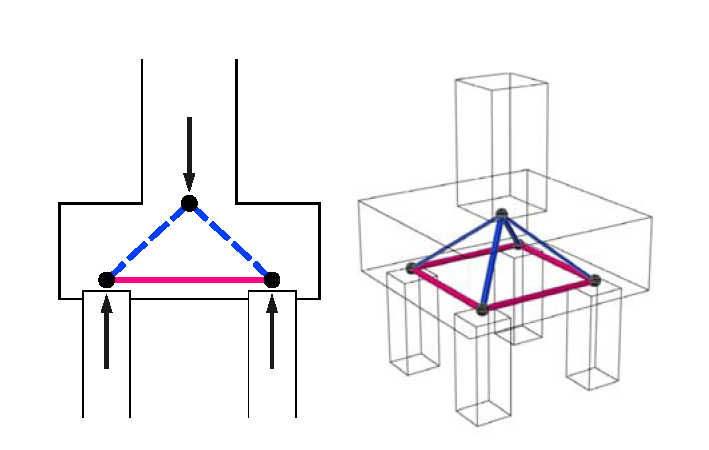

2D and 3D graphic of STM
Like Maxwell method for analyzing trusses, STM is also a graphical procedure. It is based on graphics of structures, either two-dimensional or three-dimensional. The angles, dimensions, and areas of struts and ties could be obtained by graphical methods.

HISTORY

STM was presented by Schlaich et al. in the year 1987. Other research works include Collins and Mitchell (1991) and MacGregor (1992). It has been adopted by many codes or standards, such as AASHTO LRFD Specifications, ACI 318, CSA Standard, FIP Recommendations, and European Code.

INCLINED ANGLE

One of the definitions in these codes for STM is the geometric rules in creating a proper STM model. Feasible inclined angle between strut and tie members is an important factor. There are different provisions in different codes. Approximately, the inclined angle is limited between 25° and 60°. For example, in the ACI 318M-05, the provision is “The angle between the axes of any strut and any tie entering a single node shall not be taken as less than 25 degrees.

JOINT

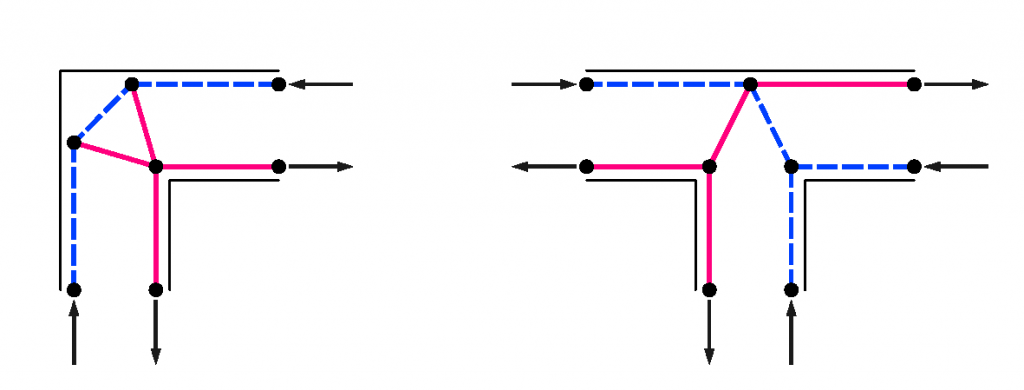

STM of beam-column joints
The common beam-column joints in moment frame structures are examples of D regions. They could be analyzed by STM models.

KIT

Nothing is elixir. STM is only a tool kit for structural engineers. It is not a cookbook procedure. It could perform well only when used correctly. In order to use STM properly, engineers should have a good understanding of structural behavior and an accurate judgment of design issues.

LOAD PATH


Good and poor load paths of the same deep beam

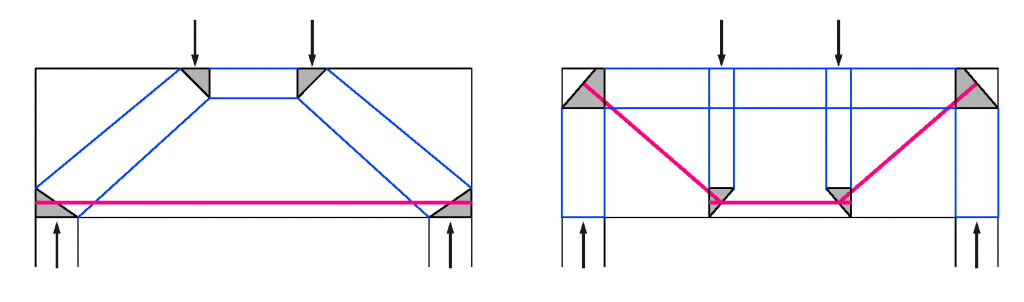

One characteristic of a proper STM model is that the load path is simple and direct. There are several possible load paths in reinforced concrete structures since there are several possible reinforcement arrangements. Nevertheless, we should be meticulous when choosing the load path. Load path should be as elegant as possible. Models which have unnecessarily complicated load paths are not good choices.

METHOD

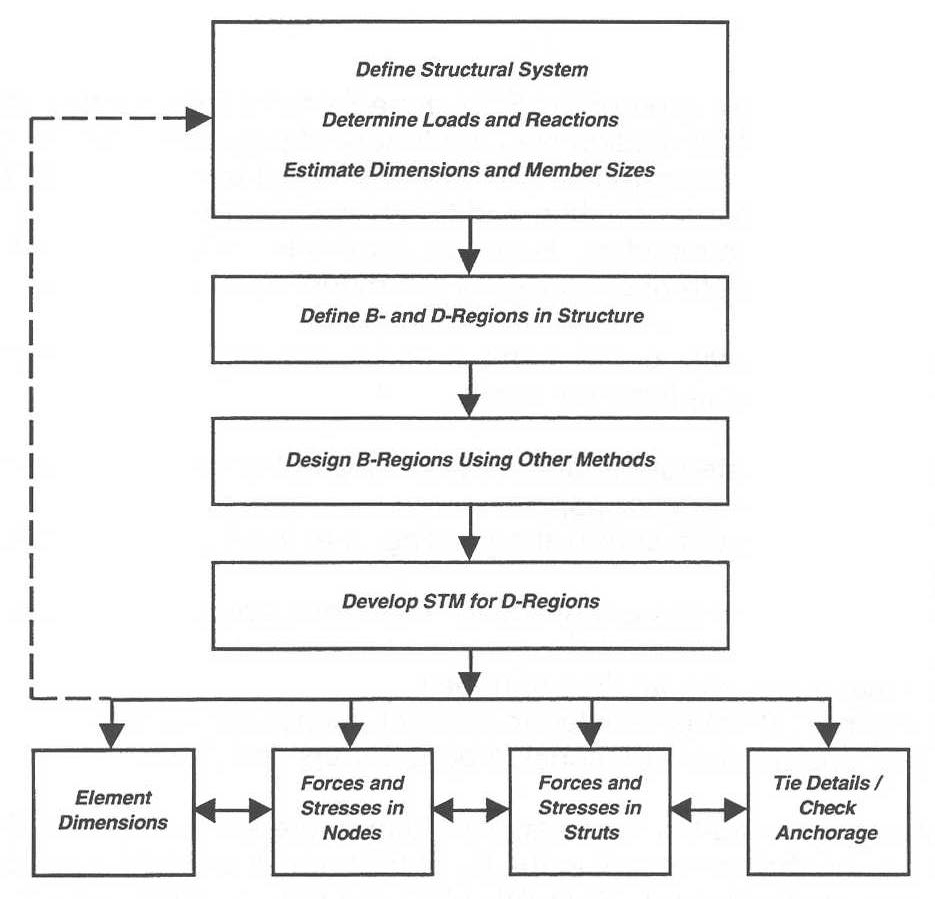

The basic method for STM is showed in this flow chart (C. C. Fu, 2001).

Flow chart of the method of STM

NODE

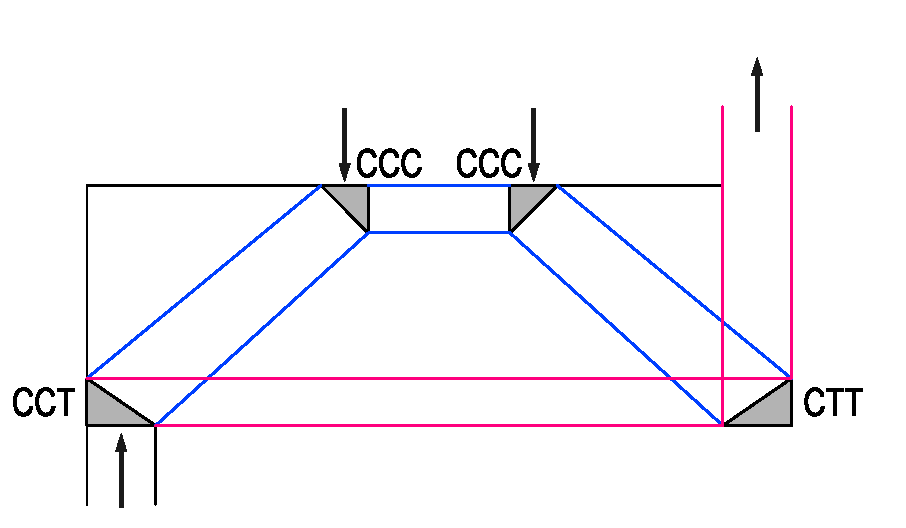

Different types of Nodes
In STM truss models, nodes are the connections of members. Usually, there are three members converging into one node. Based on the internal force of members (Compression or Tension), common nodes could be classified as CCC, CCT, and CTT. They have different calculation factors when checking node strengths.

OPTIMAL MODEL

Since there are several possible models, we should use the most ideal model in our analysis. Generally, the common criterion is the amount of reinforcement. A model with the minimum amount of reinforcement is usually the optimal model.

POTENTIAL

STM could provide relatively easy and accurate analysis for D regions in reinforced concrete. It is also useful in the shear design of structural members. Thus, it has a great potential in the field of concrete structures.

QUANTITATIVE

Although STM is a graphical procedure, quantitative method is still required. The calculation of the amount of ties and the checking of nodes and struts all need quantitative procedures. We can see the detailed procedure in the following example.

REINFORCEMENT

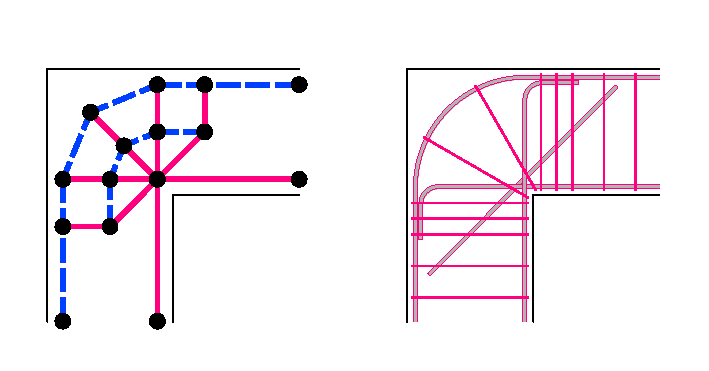

STM of joint and the corresponding reinforcement
Detailed reinforcement could be arranged by following the location and distribution of idealized ties in the STM models. Pay attention to the anchorage. Otherwise, brittle anchorage failures might happen.

STRUT

Basically, there are three types of struts: prism, fan, and bottle. They have different factors in the calculation of compression strengths.

TIE

Ties are tension members in the STM models. They should have adequate anchorage in the nodes.

UNIFIED APPROACH

The tile of the paper of Schlaich et al. in the year 1987 is Toward a Consistent Design of Structural Concrete. Since STM considers all load effects simultaneously, it is a unified approach for concrete structures.

VERTICAL REINFORCEMENT

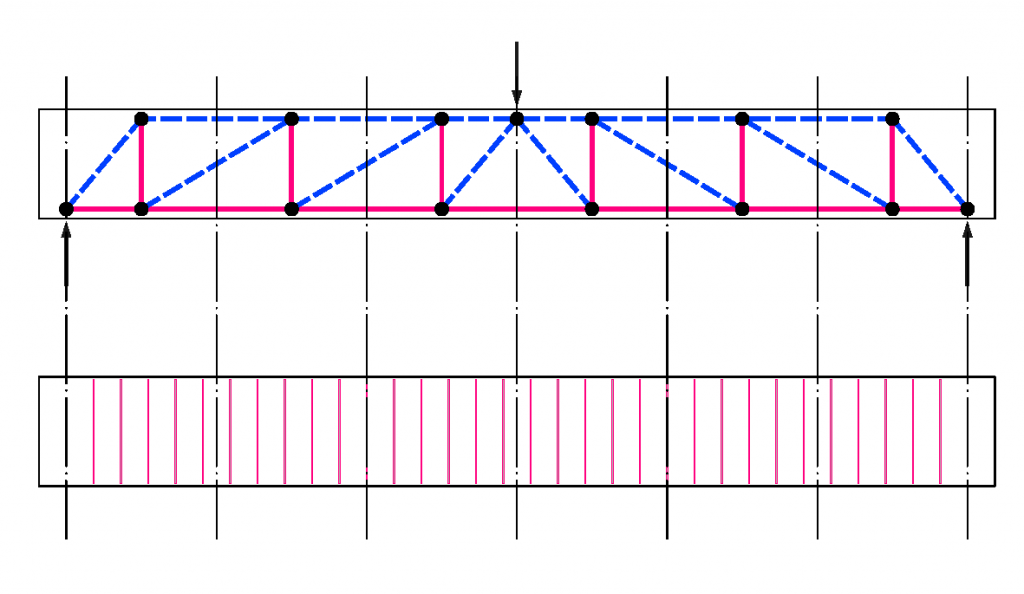

STM for shear design of beams
One of the usages of STM is the shear design of concrete components. The vertical reinforcement (stirrups) in beams could be decided by STM analysis.

WALL

Like deep beams, load bearing walls could also be analyzed by STM.

X-RAY


“X-ray” of pier cap

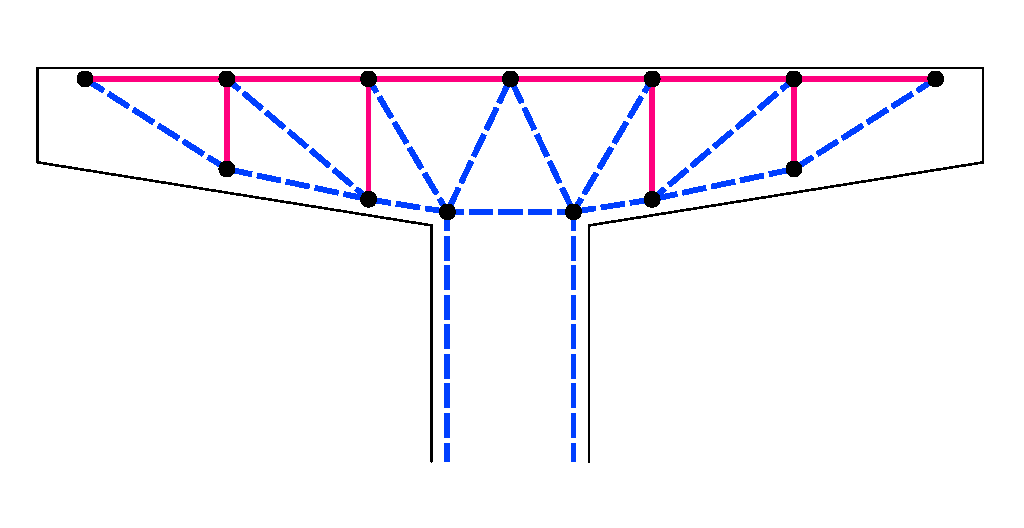

Sometimes, STM models of concrete structures could be regarded as the x-ray pictures of the structure members, such as this STM model of a pier cap.

YIELD

In order to guarantee the safety of structural members, reinforcement should yield before the brittle crush of concrete.

ZUM BEISPIEL (FOR EXAMPLE)

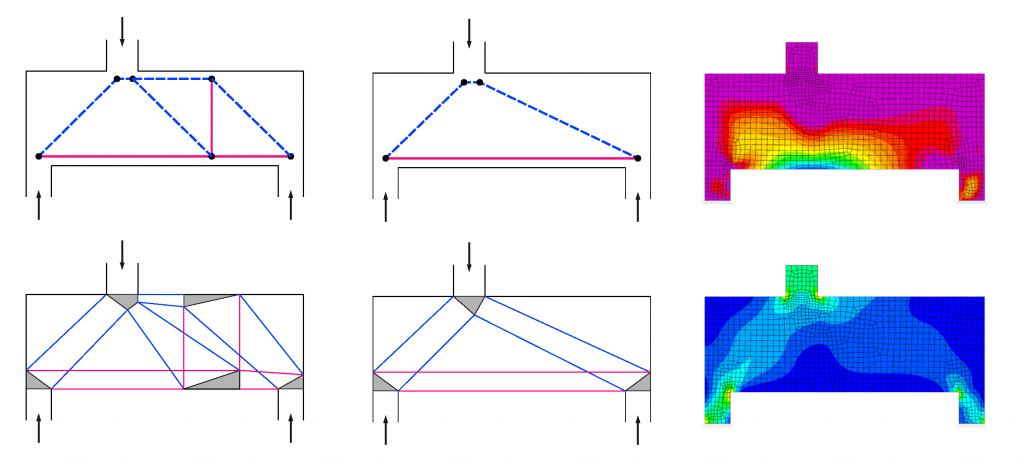

STM and FEA analysis of a deep beam
Prof. Wright provided an example of STM in his work published in the year 2003. I converted it into metric units and tried another version of STM model. Also, I compared it with the calculation based on beam theory in Chinese code GB 50010 and the results of FEA analysis. Please click this web link to see the detailed graphics and calculations of this example: http://studystructural.wordpress.com/2012/12/01/stm-deep-beam/
